| Windmill Trading price: $848.88
HDTV for Fishing... Color Screen Side and Bottom Imaging GPS Chartplotting with Humminbird's exclusive UniMap Water Temp and GPS Speed included High Resolution 640x480 screen

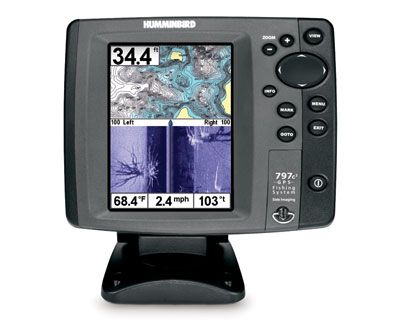

New in factory sealed retail box, with full factory warranty, the 797C2-SI is a professional fishfinder and features a brilliant color, ultra-high resolution 640V x 480H 5" display, Side Imaging and DualBeam PLUS sonar with 4000 Watts PTP power output, GPS Chartplotting with built-in UniMap, and advanced Fishing System capabilities.
Comes with powerful external GPS antenna and external DualBeam PLUS sonar unit.
External GPS antenna is highly preferable over an internal one, as it allows you much greater leeway over where to mount the unit. You can mount the unit inside an overhead cab with metal roof without having to worry about GPS reception issues. Even if a unit with an internal GPS antenna is mounted under the fabric cab cover, the GPS signal is degraded and is not as reliable and precise as the signal acquired with antenna mounted in clear view of the sky. Just think if you have your internal antenna mounted under a METAL roof!
ADVANCED SONAR FEATURES - Freeze Frame with ability to Mark Structure on Sonar
- Instant Image Update
- Real Time Sonar RTS Window
- Selective Fish ID
- Sonar Echo Enhancement
- Sonar Recording
- Sonar Snapshot
- Split Screen Zoom
- TrueArch Technology
- Wide Narrow Cone Split Screen
USER-FRIENDLY TECHNOLOGY - Optional in-dash mounting easily fits consoles outfitted with a 5.4H" x 6.9W" mounting space
- Digital Flasher View delivers real time, flasher performance
- Real Time Sonar™ instantly captures the action under the boat
- Sonar Echo Enhancement™ reveals the smallest details - even your jig!
- PC Connection capability to save waypoints, and upgrade internal software
- One-Touch Zoom and Bottom Lock enhance resolution and separate fish from structure
- TruArch™ shows actual fish returns or choose selective Fish ID+™ with target depth
- Freeze Frame instantly pause display allowing more time to see the details
- Expansion capabilities with optional Fishing System Modules: CannonLink, InterLink, Wireless Sonar Link, and WeatherSense.
- Precision 2 ½" target separation reveals close hanging fish
- X-Press™ Menus access the most important controls with fewer button presses
- Selectable large digital readout view for easy readability
- Microdynamic transducer splices through water for reliable readings to 70 MPH
- Fresh and saltwater options for optimal performance in any environment
- Adjustable 2x, 4x, 6x and 8x zoom levels
- Adjustable backlight for night fishing
- Fully gasketed, waterproof construction - they float!
- Assembled in the USA, One year limited warranty
- Three selectable background colors and 3 sonar colors palette.
Package includes- Owner's Manual
- Quick Reference Guide
- Mounting Bracket
- Power Cable
- Single Frequency Transducer
- Transom Mount Transducer
- Powerful GPS antenna which can be mounted outside cab for best reception
Specifications:Display Size 5.0" diagonal
Display Pixel Matrix 640V x 480H
Display Type: 256 Color TFT
Display Colors/Grayscale: 256 Colors
DualBeam PLUS
Sonar Coverage 200 kHz / 20˚ @ -10db and 83 kHz / 60˚ @ -10db
Side Imaging Sonar Coverage 455 kHz / (2) 86˚ @ -10db
Sonar Optional: QuadraBeam PLUS
Target Separation: 2.5 inches
Power Output (RMS): 500 Watts (RMS)
Power Output (Peak to Peak): 4000 Watts (Peak-to-Peak)
Temperature: Included
Speed: GPS Speed Included
Backlight: Yes
Waterproof: Yes
Mount: Quick Disconnect
Unit Size: 6.9" W x 7.5" H x 4.5" D
Mount: Optional In-dash
Unit Size: 6.9" W x 5.4" H x 1.25" D
Transducer - Standard: XNT-9-SI-180-T
Transducer Mounting: Transom Power Input: 10-20 VDC
GPS Antenna: external, included (all data obtained directly from Humminbird for model HUM4067701) |
